1977 Hardinge HLV-H Lathe

Up for sale is this Hardinge HLV-H tool room lathe. This is 230V 3 phase and is 1.5 HP. The spindle is infinitely variable from 125-3000 RPM and it has the tapered Hardinge 4 degree spindle. I bought this machine some time back from a closed factory in Dayton, Ohio and I have never plugged it in or tested it. My intention was to fix and resell but I have not been able to find the time to do so. This is being listed as a “mechanics special” & sold as-is so please purchase knowing it will take some time and work to get up and running. This has an Anilam Wizard 111 DRO on both axis but again, condition is unknown. I do see that the power feed motor was removed at some time but this looks complete otherwise. All the dials and levers move as they should and the spindle rotates freely. This machine is certainly worth the time to fix as the normal price for an HLV-H of this age is $13,000 and up!I have a forklift and will load a trailer or semi at no cost. Palletizing fee is $250. The machine is available for inspection at my shop just outside of Milwaukee, WI.

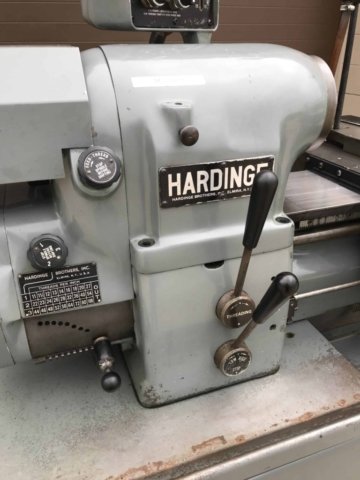

This lathe also has the large metric threading gear box cover. With a metric banjo and the appropriate change gears this lathe will thread metric thread pitches.

SPECIFICATIONS:

Spindle Capacity 5C Collets – Round……………………………..1-1/16″
Spindle Capacity 5C Collets – Hex……………………………………..7/8″
Spindle Capacity 5C Collets – Square…………………………………3/4″
Step Chucks…………………………………………………………1-1/16″ – 6″
Spindle Nose………………………………………………Hardinge Tapered
Variable Spindle Speeds…………………………………125 – 3000 RPM
Swing Over Bed……………………………………………………………….11″
Swing Over Cross Slide………………………………………………………6″
Swing Over Carriage…………………………………………………………..9″
Distance Between Centers…………………………………………………18″
Hole thru Spindle………………………………………………………….1-1/4″
Compound Slide Travel………………………………………………………3″
Carriage Power Feed Range……………………………….5/16″ – 7 IPM
Cross Slide Power Feed Range……………………………3/16″ – 4 IPM
Tailstock Spindle Travel…………………………………………………3-3/4″
Tailstock Spindle Taper…………………………………………….No. 2 MT
Lead Screw Diameter…………………………………………1″ – 8 Thread
Range of Threads in Gear Box……………………………………11 – 108
Inch Threading……………………………………………..(36) 11 – 108 TPI
Electrics………………………………………………………..230V/3Ph/60Hz

*Preliminary Specifications Subject to Verification

All sales are “As-Is” FOB New Berlin, WI 53151 freight collect (buyer is responsible for all freight costs but we are happy to assist in making arrangements). Machine is available for inspection. Machine can be crated and shipped internationally. Payment to be made by cash, check or wire transferI will help in any way I can to assist in transportation of this machine. Shipping weight is approx. 2300 pounds and shipping dimensions are roughly 78″ X 40″ X 70″

SOLD
Posted on

Hardinge HLV-H Lathe

Up for sale is this Hardinge HLV-H Super Precision Tool Room Lathe. This is a good, tight, & original machine and has never been repainted or abused. This machine was purchased new by a large tech company out in CA and was operated by one man its entire life. I purchased this from that man.

This is an early 1980’s machine that has many late model features such as a tapered Hardinge spindle, wide bed plate with teflon lined carriage, ball bearing carriage rack gear and more. This machine is 230V 3 Phase power. This machine is in good mechanical condition and is ready to be used right away. All the power feeds function as they should and the gearbox works as it should. The oiling lubrication system functions as it should as well. This lathe comes with the pictured tooling, including 2 trays of 5C collets. These are all different sizes and styles but the large majority are Hardinge brand. Other accessories are available such as taper attachment, steady rest, chucks, tool post, etc.

This machine is powered up and available for inspection.

SPECIFICATIONS:
Spindle Capacity 5C Collets – Round……………………………..1-1/16″
Spindle Capacity 5C Collets – Hex……………………………………..7/8″
Spindle Capacity 5C Collets – Square…………………………………3/4″
Step Chucks…………………………………………………………1-1/16″ – 6″
Spindle Nose………………………………………………Hardinge Tapered
Variable Spindle Speeds…………………………………125 – 3000 RPM
Swing Over Bed……………………………………………………………….11″
Swing Over Cross Slide………………………………………………………6″
Swing Over Carriage…………………………………………………………..9″
Distance Between Centers…………………………………………………18″
Hole thru Spindle………………………………………………………….1-1/4″
Compound Slide Travel………………………………………………………3″
Carriage Power Feed Range……………………………….5/16″ – 7 IPM
Cross Slide Power Feed Range……………………………3/16″ – 4 IPM
Tailstock Spindle Travel…………………………………………………3-3/4″
Tailstock Spindle Taper…………………………………………….No. 2 MT
Lead Screw Diameter…………………………………………1″ – 8 Thread
Range of Threads in Gear Box……………………………………11 – 108
Number of Thread Changes in Gear Box……………………………..27
Inch Threading……………………………………………..(36) 11 – 108 TPI
Electrics………………………………………………………..230V/3Ph/60Hz

*Preliminary Specifications Subject to Verification.

All sales are “As-Is” FOB New Berlin, WI 53151 freight collect (buyer is responsible for all freight costs but we are happy to assist in making arrangements). Machine is under power and available for inspection. Machine can be crated and shipped internationally. Payment to be made by cash, check or wire transferI will help in any way I can to assist in transportation of this machine. Shipping weight is approx. 2000 pounds and shipping dimensions are roughly 78″ X 40″ X 70″

Price: SOLD
Posted on

Hardinge HLV-H-EM Tool Room Lathe

Up for sale is this Hardinge HLV-H EM (English/Metric) Super Precision Tool Room Lathe. This is in good condition and has never been repainted. This machine was originally purchased by the Polaroid Corp. and I purchased it from a technology company in the Boston area.To the best of my knowledge this is a 1980 machine that has many late model features such as a tapered Hardinge spindle, wide bed plate with teflon lined carriage, ball bearing carriage rack gear and more. This machine is 230V 3 Phase power. This lathe has the expanded english/metric gearbox that allows metric threading with the turn of a knob. This also has the dual dial readouts that have english and metric readings.This machine is in good mechanical condition and is ready to be used right away. All the power feeds function as they should and the gearbox works as it should. The oiling lubrication system functions as it should as well. This is equipped with an SWI Trak 102 two axis DRO that reads in 0.0005″ increments. The DRO manual is included too. This lathe comes with the pictured tooling, including 2 trays of 5C collets. These are all different sizes and styles but the large majority are Hardinge brand. Other accessories are available such as taper attachment, steady rest, chucks, tool post, etc.

This machine is powered up and available for inspection.

SPECIFICATIONS:
Spindle Capacity 5C Collets – Round……………………………..1-1/16″
Spindle Capacity 5C Collets – Hex……………………………………..7/8″
Spindle Capacity 5C Collets – Square…………………………………3/4″
Step Chucks…………………………………………………………1-1/16″ – 6″
Spindle Nose………………………………………………Hardinge Tapered
Variable Spindle Speeds…………………………………125 – 3000 RPM
Swing Over Bed……………………………………………………………….11″
Swing Over Cross Slide………………………………………………………6″
Swing Over Carriage…………………………………………………………..9″
Distance Between Centers…………………………………………………18″
Hole thru Spindle………………………………………………………….1-1/4″
Compound Slide Travel………………………………………………………3″
Carriage Power Feed Range……………………………….5/16″ – 7 IPM
Cross Slide Power Feed Range……………………………3/16″ – 4 IPM
Tailstock Spindle Travel…………………………………………………3-3/4″
Tailstock Spindle Taper…………………………………………….No. 2 MT
Lead Screw Diameter…………………………………………1″ – 8 Thread
Range of Threads in Gear Box……………………………………11 – 108
Number of Thread Changes in Gear Box……………………………..72
Inch Threading……………………………………………..(36) 11 – 108 TPI
Metric Threading………………………………………(36) 0.275 – 2.7 mm
Electrics………………………………………………………..230V/3Ph/60Hz

*Preliminary Specifications Subject to Verification.

All sales are “As-Is” FOB New Berlin, WI 53151 freight collect (buyer is responsible for all freight costs but we are happy to assist in making arrangements). Machine is under power and available for inspection. Machine can be crated and shipped internationally. Payment to be made by cash, check or wire transfer. I will help in any way I can to assist in transportation of this machine. Shipping weight is approx. 2300 pounds and shipping dimensions are roughly 78″ X 40″ X 70″

SOLD!
Posted on

1988 Hardinge HLV-H EM English Metric Lathe

Up for sale is this Hardinge HLV-H EM (English/Metric) Super Precision Tool Room Lathe. This is in very good condition and has never been repainted. This was ordered from the factory in Hardinge white and grey colors. I purchased this machine at auction from a closed machine shop and have done a considerable amount of work to get the machine to where it is today.

This is a late 1988 machine and it has many late model features such as hardened and ground cross slide ways, tapered Hardinge spindle, wide bed plate with teflon lined carriage, pre-drilled DRO mounting points, ball bearing carriage rack gear and more. This machine is 230V 3 Phase but it is dual voltage so it can be changed to 460V if desired.

When received, the left cross slide wear strip was delaminating from the cast iron lathe carriage (common problem) and causing unacceptable binding in the cross slide. The carriage was removed and disassembled and both wear strips were peeled off. The surfaces were prepared using factory procedures and the strips were epoxied back into place. Both the hardened wear strips and dovetail surfaces were then ground in situ. The cross slide & gib were then hand scraped and fitted to the machine. As I was doing this work I elected to have many of the carriage surfaces reground for aesthetic purposes in addition to fully cleaning the machine. The Teflon sheet on the bottom of the carriage was in good condition and so it was left untouched. The Bijur oil pump has been completely rebuilt with new o-rings, filters, and gaskets and all oil metering units, o-rings, and copper tubes have been replaced with new. New neoprene way wipers have been installed and the apron hand wheel bushings have been replaced. Both variable speed drive belts have been replaced and the V.S. countershaft bearings have been replaced as well. Lastly, the dual dial compound has been disassembled, cleaned, & lubricated. I’m sure there are other things I’m missing but that is the general overview of what I have done to this machine.

After all this work the machine is now in excellent mechanical condition and is ready to be used right away. The spindle is whisper quiet and runs great at all speeds and the power feeds work great in all speeds and directions. The machine is very clean and tight and it now looks great too. Lathe comes with pictured tooling. This has a factory installed Acu-Rite DRO as well as a factory work light. Other accessories are available such as taper attachment, follow rest, steady rest, chucks, tool post, etc.

SPECIFICATIONS:
Spindle Capacity 5C Collets – Round……………………………..1-1/16″
Spindle Capacity 5C Collets – Hex……………………………………..7/8″
Spindle Capacity 5C Collets – Square…………………………………3/4″
Step Chucks…………………………………………………………1-1/16″ – 6″
Spindle Nose………………………………………………Hardinge Tapered
Variable Spindle Speeds…………………………………125 – 3000 RPM
Swing Over Bed……………………………………………………………….11″
Swing Over Cross Slide………………………………………………………6″
Swing Over Carriage…………………………………………………………..9″
Distance Between Centers…………………………………………………18″
Hole thru Spindle………………………………………………………….1-1/4″
Compound Slide Travel………………………………………………………3″
Carriage Power Feed Range……………………………….5/16″ – 7 IPM
Cross Slide Power Feed Range……………………………3/16″ – 4 IPM
Tailstock Spindle Travel…………………………………………………3-3/4″
Tailstock Spindle Taper…………………………………………….No. 2 MT
Lead Screw Diameter…………………………………………1″ – 8 Thread
Range of Threads in Gear Box……………………………………11 – 108
Number of Thread Changes in Gear Box……………………………..72
Inch Threading……………………………………………..(36) 11 – 108 TPI
Metric Threading…………………………………….(35) 0.4375 – 2.7 mm
Electrics………………………………………………………..230V/3Ph/60Hz

*Preliminary Specifications Subject to Verification.

SOLD

Posted on

1989 Hardinge HLV-H Tool Room Lathe

Up for sale is this Hardinge HLV-H Super Precision Tool Room Lathe. This is in nice original condition and has never been repainted. This machine came to me in good condition but I have replaced all the oil metering units and have completely flushed the oiling system. I have given it a cleaning, adjusted the gibs as well as replaced both neoprene way wipers. This machine is equipped with a top of the line Heidenhain ND 780 DRO accurate to 0.0001″

This is a 1989 machine and it has many late model features such as hardened and ground cross slide ways, tapered Hardinge spindle, wide bed plate with teflon lined carriage, pre-drilled DRO mounting points, ball bearing carriage rack gear and more.

This machine left the factory as a 460V unit but at some point has been converted to a 230V machine by the addition of a step up transformer (mounted to back of lathe). I will convert this machine back to the factory 460V specification at no cost if the buyer desires.

Machine comes with pictured tooling (misc. 5C collets). In addition I have an aftermarket machine light as well as the lexan chip shield that will be included. Other accessories are available such as taper attachment, follow rest, steady rest, chucks, tool post, etc.

SPECIFICATIONS:
Spindle Capacity 5C Collets – Round……………………………..1-1/16″
Spindle Capacity 5C Collets – Hex……………………………………..7/8″
Step Chucks…………………………………………………………1-1/16″ – 6″
Variable Spindle Speeds…………………………………125 – 3000 RPM
Swing Over Bed……………………………………………………………….11″
Swing Over Cross Slide………………………………………………………6″
Swing Over Carriage…………………………………………………………..9″
Distance Between Centers…………………………………………………18″
Hole thru Spindle………………………………………………………….1-1/4″
Compound Slide Travel………………………………………………………3″
Carriage Power Feed Range……………………………….5/16″ – 7 IPM
Cross Slide Power Feed Range……………………………3/16″ – 4 IPM
Tailstock Spindle Travel…………………………………………………3-3/4″
Tailstock Spindle Taper…………………………………………….No. 2 MT
Lead Screw Diameter…………………………………………1″ – 8 Thread
Range of Threads in Gear Box……………………………………11 – 108
Number of Thread Changes in Gear Box……………………………..27
Electrics………………………………………………..460V/230V/3Ph/60Hz

*Preliminary Specifications Subject to Verification.

All sales are “As-Is” FOB New Berlin, WI 53151 freight collect (buyer is responsible for all freight costs but we are happy to assist in making arrangements). Machine is available for inspection. Machine can be crated and shipped internationally. Payment to be made by cash, check or wire transfer

Posted on

1986 Hardinge HLV-H Tool Room Lathe

Up for sale is this Hardinge HLV-H Super Precision Tool Room Lathe. This is in exceptionally nice condition and has had very low use. This is all original and has never been repainted. This came out of a laboratory setting and was used in making prototype parts. This machine was in excellent condition when I received it so the only work that has been done is a full clean and replacement of the neoprene way wipers. The oiling system has been cleaned and flushed as well as the carriage fluid flushed and replaced with new. Everything functions as it should and is just smooth smooth smooth. This is a very nice machine; one of the nicest I have come across.

This is a 1986 machine and it has many late model features such as hardened and ground cross slide ways, tapered Hardinge spindle, wide bed plate with teflon lined carriage, pre-drilled DRO mounting points, ball bearing apron rack gear and more.

Machine comes with pictured tooling (misc. 5C collets, live center, Buck 3 jaw adjust-tru chuck, drill chuck, factory change gear, & drive plate). In addition I have the coolant nozzle as well as the lexan chip shield. Other accessories are available such as taper attachment, follow rest, steady rest, chucks etc.

SPECIFICATIONS:
Spindle Capacity 5C Collets – Round……………………………..1-1/16″
Spindle Capacity 5C Collets – Hex……………………………………..7/8″
Step Chucks…………………………………………………………1-1/16″ – 6″
Variable Spindle Speeds…………………………………125 – 3000 RPM
Swing Over Bed……………………………………………………………….11″
Swing Over Cross Slide………………………………………………………6″
Swing Over Carriage…………………………………………………………..9″
Distance Between Centers…………………………………………………18″
Hole thru Spindle………………………………………………………….1-1/4″
Compound Slide Travel………………………………………………………3″
Carriage Power Feed Range……………………………….5/16″ – 7 IPM
Cross Slide Power Feed Range……………………………3/16″ – 4 IPM
Tailstock Spindle Travel…………………………………………………3-3/4″
Tailstock Spindle Taper…………………………………………….No. 2 MT
Lead Screw Diameter…………………………………………1″ – 8 Thread
Range of Threads in Gear Box……………………………………11 – 108
Number of Thread Changes in Gear Box……………………………..27
Electrics………………………………………………………..230V/3Ph/60Hz

*Preliminary Specifications Subject to Verification.

All sales are “As-Is” FOB New Berlin, WI 53151 freight collect (buyer is responsible for all freight costs but we are happy to assist in making arrangements). Machine is available for inspection. Machine can be crated and shipped internationally. Payment to be made by cash, check or wire transfer

SOLD

Posted on

1983 HLV-H EM S/N HLV-H-9761-T

ID #: 9761
Brand: HARDINGE
Model: HLV-H EM
Type: Precision Lathes
Condition: Used – Good
Year:
Serial #: HLV-H-9761-T
Location: Milwaukee, Wisconsin
United States
Return Policy: 30 days
Stock #: 9761

Up for sale is this 1983 Hardinge HLV-H-EM Tool Room lathe. This machine was purchased new and was used in a home machine shop. This is a late model lathe that has many desirable features such as hardened and ground cross slide way inserts, teflon carriage coating, 7″ wide flame hardened & ground lathe bed, Hardinge 4 degree taper lock spindle and much more.


This is the rare english/metric version of this machine and so it will do metric threading in addition to all the dials having metric and english graduations on them.

This is a clean machine and the paint is original. The only flaw on the machine is some of the paint has cracking which is only cosmetic. The way wipers have been replaced and are brand new and the bed plate is in very nice condition. This machine is under power and can be run and tested on site. The spindle is whisper quiet even at full speed of 3000 RPM. The gearbox shifts easily and functions as it should. The DC motor power feed works well and all apron clutches function as they should. The factory coolant nozzle is included and the pump functions as well. Included with this are many Hardinge brand 5C collets. Lathe includes a Buck 3 jaw chuck, factory Hardinge 4 position turret tool post, Hardinge dial indicator carriage stop with Mitutoyo 2 inch dial indicator, metric change gear bracket with gears, & Service and Owners manuals. The Factory coolant & chip splash guard is not shown but it is included.
SOLD
